Carbonated Beverage Filling Machine 4 in 1



Carbonated Beverage Filling Machine 4 in 1 profile:

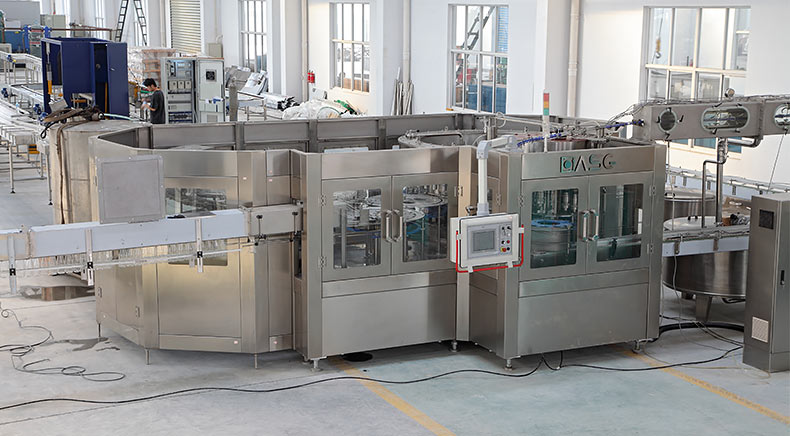

DXGF, DGF 4 in 1 Carbonated Beverage Filling Machine apply to the production of carbonated drink, PET bottled carbonated drinks, with optional capacity from 3,000BPH to 16,000BPH.
We are the supplier of high quality filling equipment manufacturer and whole line program in China.

4 in 1 Carbonated beverage equipment 03 4 in 1 Carbonated beverage equipment 04 4 in 1 Carbonated beverage equipment 06

4 in 1 Carbonated beverage equipment 08

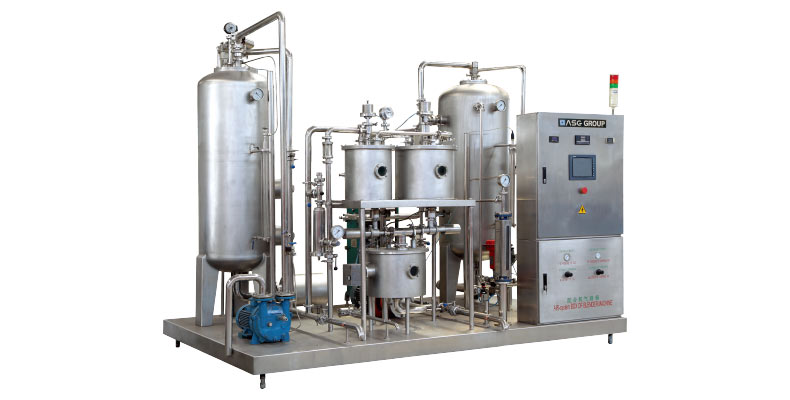

This device is a beverage mixer used in the carbonated filling machine.

4 in 1 Carbonated Beverage Filling Machine?Main?features:

  1. Compact structure, beautiful appearance, easy operation, high automation, low labor intensity
  2. Bottles transmission adopts support bottom technology, suitable for glass bottle manufacturing; Equipment height can be adjusted and easy to change bottle volume, when changing bottle volume just need to change the curved guide plant and star-wheel.
  3. 4 in 1 Carbonated beverage filling machine?parts directly contacted with product are made of food grade stainless steel and no technology dead corner.
  4. Valve opening device is driven by the cylinder; open the valve in time according to the signal, movements are accurate and reliable.
  5. High-speed, high precision filling valve, filling fast and stable, accurate and non-liquid fluid loss.
  6. Using deflection regulating valve, continuous control of fluid materials flow, so that hydraulic cylinder to maintain a smaller level fluctuations, to ensure filling accuracy.
  7. Equipped with CIP circuit and control procedures, equipment is cleaned in place.
  8. Capping head adopts constant magnetic torque device to ensure the sealing quality, and no damage caps
  9. Efficient use of the cap sorting and automatic cap feeding system, with a perfect cap feeding and cap lacking protective device.
  10. Bottle-outlet wheel adopts fixed height, when changing bottle volume, no need to adjust conveyor height.
  11. With perfect overload protection device, can effectively protect the equipment and the operator’s safety
  12. Using touch-screen operation, equipment operation status is very clear to see.
  13. Main electrical components (touch screen, PLC, inverter, etc.) are imported brand-name products like Omron, Mitsubishi, Schneider, etc
  14. Pneumatic system components are used well-known brand name products. SMC, FESTO, etc



4 in 1 Carbonated Beverage Filling Machine?Technical Parameters：

ASG (DXGF) carbonated beverage filling line–technical parameters

Application

For cola, carbonated beverage, carbonated wine, carbonated water, etc.

Equipment components

Rinsing system, filling system, capping system, transition system, conveying system, electric hole system

Equipment components

DGF=D(Isobaric) G (filling) F (capping) DXGF=D(Isobaric) X (洗rinsing) G (filling) F (capping)

Lettermodel definition

14/12/5

16/16/5

24/24/8

32/32/8

40/40/10

50/50/12

65/65/15

72/72/18

80/80/22

Number model

14

16

24

32

40

50

65

72

80

Number of rinsing head

12

16

24

32

40

50

65

72

80

Number of capping head

5

5

8

8

10

12

15

18

22

Air pressure MPa

0.7

0.7

0.7

0.7

0.7

0.7

0.7

0.7

0.7

Air consumption m3/min

1

1

1

1

1

1

1.2

1.2

1.2

Rinsing water pressure MPa

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

0.2-0.25

Rinsing water consumption ton/hour

0.7

1

1.6

2

2.5

3

3.5

4.5

5.2

Main motor kw

1.5

2.2

4

3

7.5

7.5

11

11

11

Power kw

2.5

3.5

5

5.5

10

10

13

13

13

Dimension L×W×H mm

2360
1770
2700

2850
2150
2700

2800
2230
2750

4275
2960
2750

4697
3322
2750

5905
4125
2750

6000
5500
2750

6540
4900
2750

7760
5415
2750

Weight ton

3

3.5

4.8

8.5

10

10

11.5

13

13

Filling way

Isobaric

Isobaric

Isobaric

Isobaric

Isobaric

Isobaric

Isobaric

Gravity

Gravity

Comprehensive Performance

Safety performance

Overload protection

Equipped with overload protectiondevice, canprovide securityforpersonnel and equipment

Food-gradestainless steel

Material contactparts made offood-gradestainless steel,noprocessdead angle andcleaning

Avoid secondary pollution

Speciallydesignedstainless steelbottle clip, has no contact with bottle screw,avoidsecondary pollution

Energy saving performance

Level automatic control system

Efficiency Performance

more easier for changing bottle shape

Using inlet bottle star wheel directly connectedwith air conveyortechnology,replacing the original inlet bottlescrew and conveyorchain

Using block bottle neck technology, no need to change equipment height when changing bottle shape

Using spiral down way of outlet bottle star wheel, no need to change the height of conveyor chain when changing botte shape?

Reliablefillingprecision

Using deflection control valve, control the flow of inlet liquid, to ensure maximum filling precision

import key component

Inverter, touch screen, PLC and etc all use world famous brand

Main air pipe system components use world famous brand

CIP

Equipped with CIP return pipe, equipment can be cleaned on the spot

Magneticconstant torquedevice

Cappinghead adoptsmagneticconstant torquedevice fornon-destructive to cap,to ensurecappingquality

Touch screen

Support for touch screen operation (except 14/12/5)
